30-35EHE Series Electric Counterbalanced Forklift
Product Features
Strong power

Revolutionary performance improvements
Compared with traditional battery forklifts, the full load travel speed is increased by 33%, and the full load lifting speed is increased by 92%

The full-load driving speed exceeds 20km/h, and there is no pressure on heavy-load and large-angle climbing. There are also a variety of modes that can be freely switched to adapt to different operating environment requirements.

Energy saving intelligence

Low power consumption, high battery life

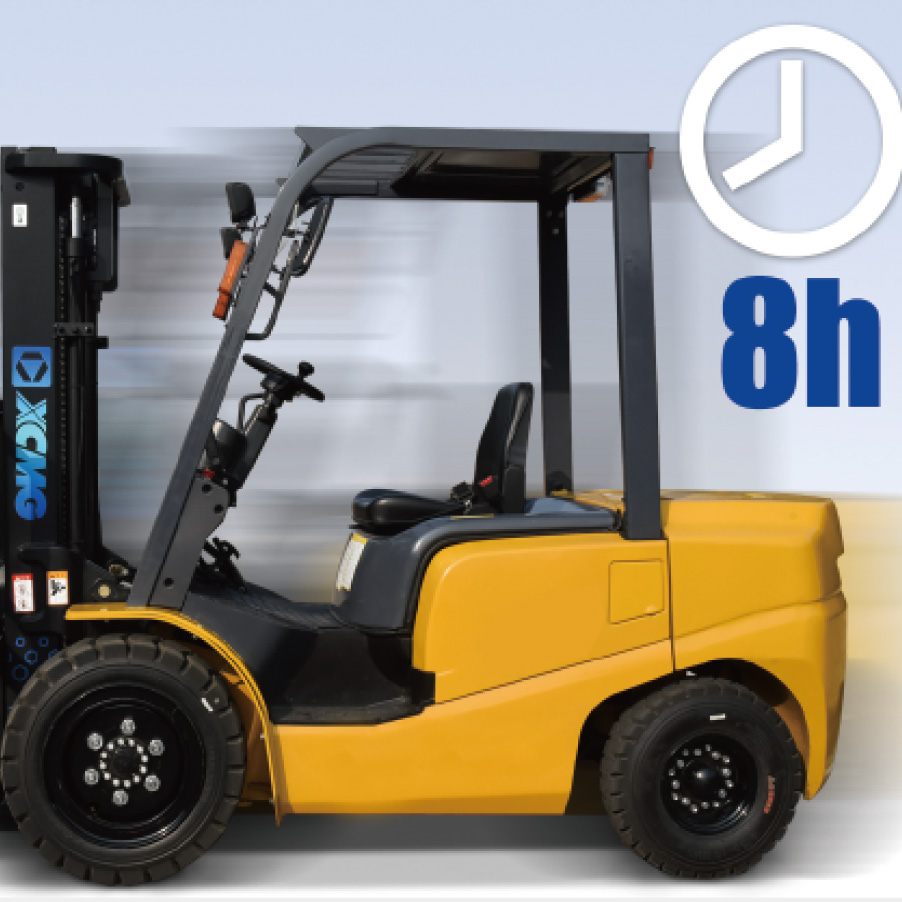

Using high-voltage drive and permanent magnet synchronous technology, it greatly reduces energy consumption and has a battery life of up to 8 hours. (Data condition: JB/T3300 medium-strengthened test standard, 3-ton standard vehicle)

Smart Meter
Multifunctional intelligent color screen instrument, the display of vehicle operating parameters is more intuitive.

Security Protection

Safety Protection
Multiple leakage monitoring BMS, multiple insulation monitoring systems for walking motors and pump motors, automotive-grade insulation design, far higher than industrial-grade high-voltage safety protection standards.

More than waterproof
The whole vehicle is IP65 waterproof and can be directly washed. Meet the requirements of harsh working conditions such as rainy days, and it is easier to clean.

Effective and reliable

Effective and reliable

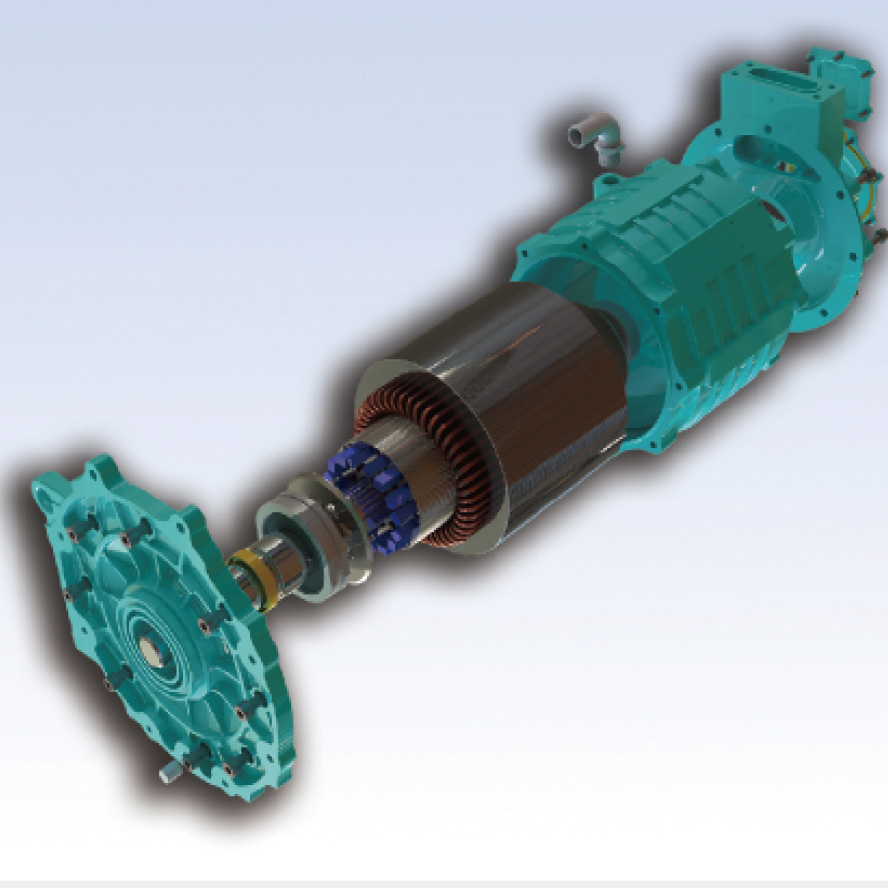

High-efficiency permanent magnet synchronous motor adopts double permanent magnet synchronous motor, which is smaller in size, lighter in weight, lower in current, larger in starting torque, and has stronger load capacity , lower energy consumption and smaller heat generation, the whole vehicle has been verified by 500 hours of intensive testing, and its performance is reliable and durable.

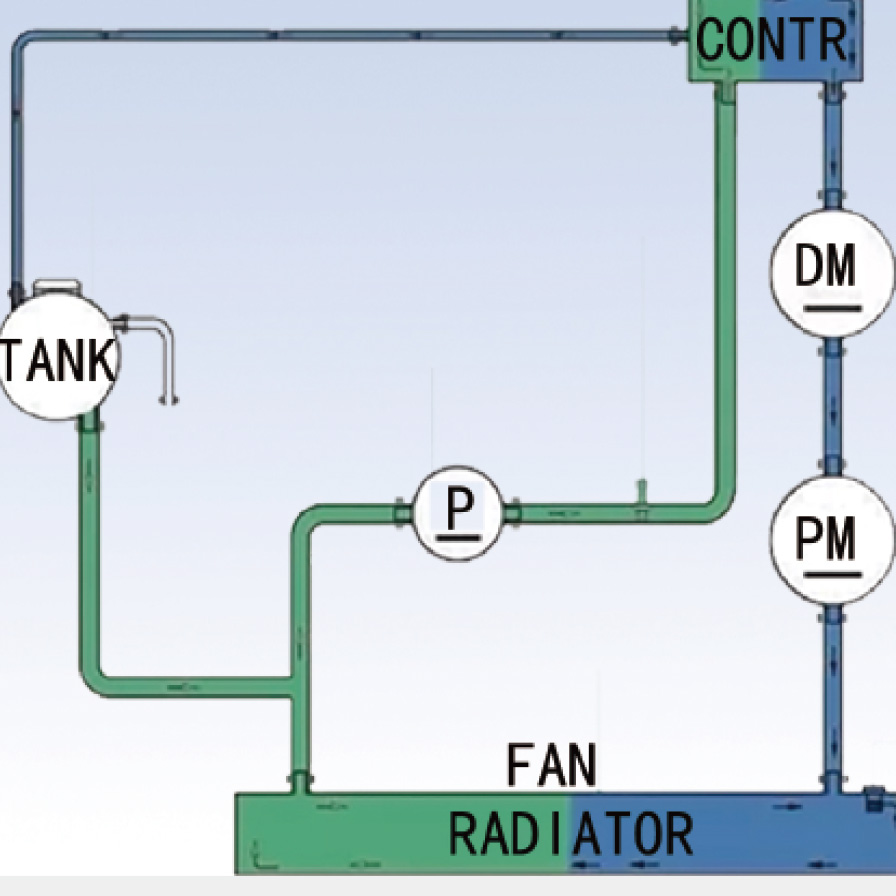

Water cooling system
The motor and electric control are all cooled by water, and the cooling fan is controlled by the controller to turn on, high or low speed, so you can use it with confidence even in hot summer.

Gantry parameters

Load Curve Graph

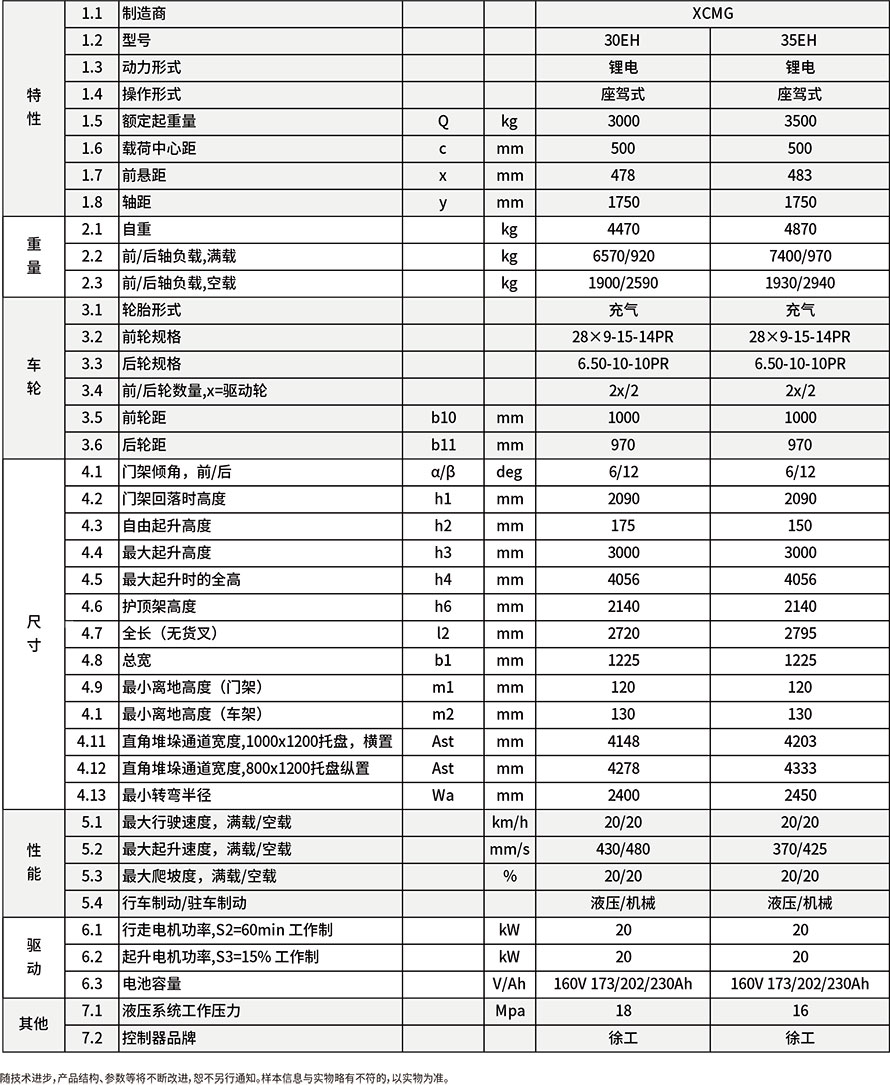

Technical parameters
